26L series radar water level meter
The 26L series radar water level meter is a non-contact liquid level measurement product developed for large-section application scenarios.
-
Product overview
-
Technical features
-
Technical parameters
-
Scenario application
Product overview

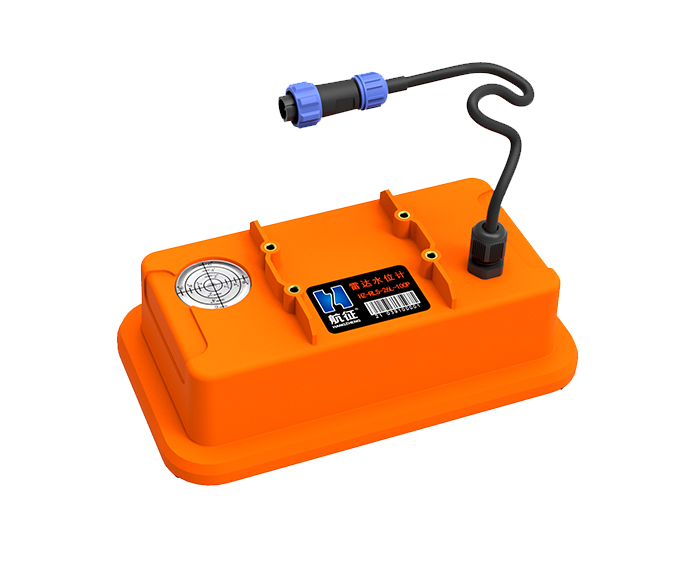

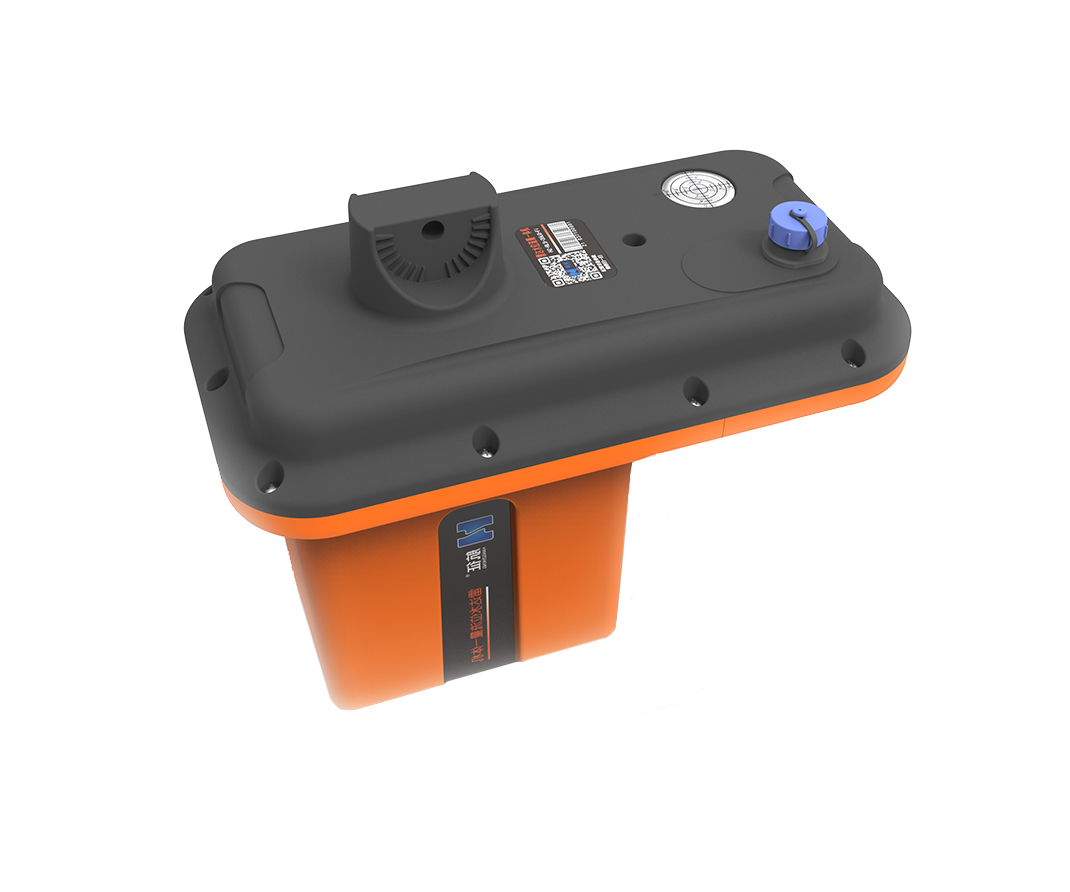

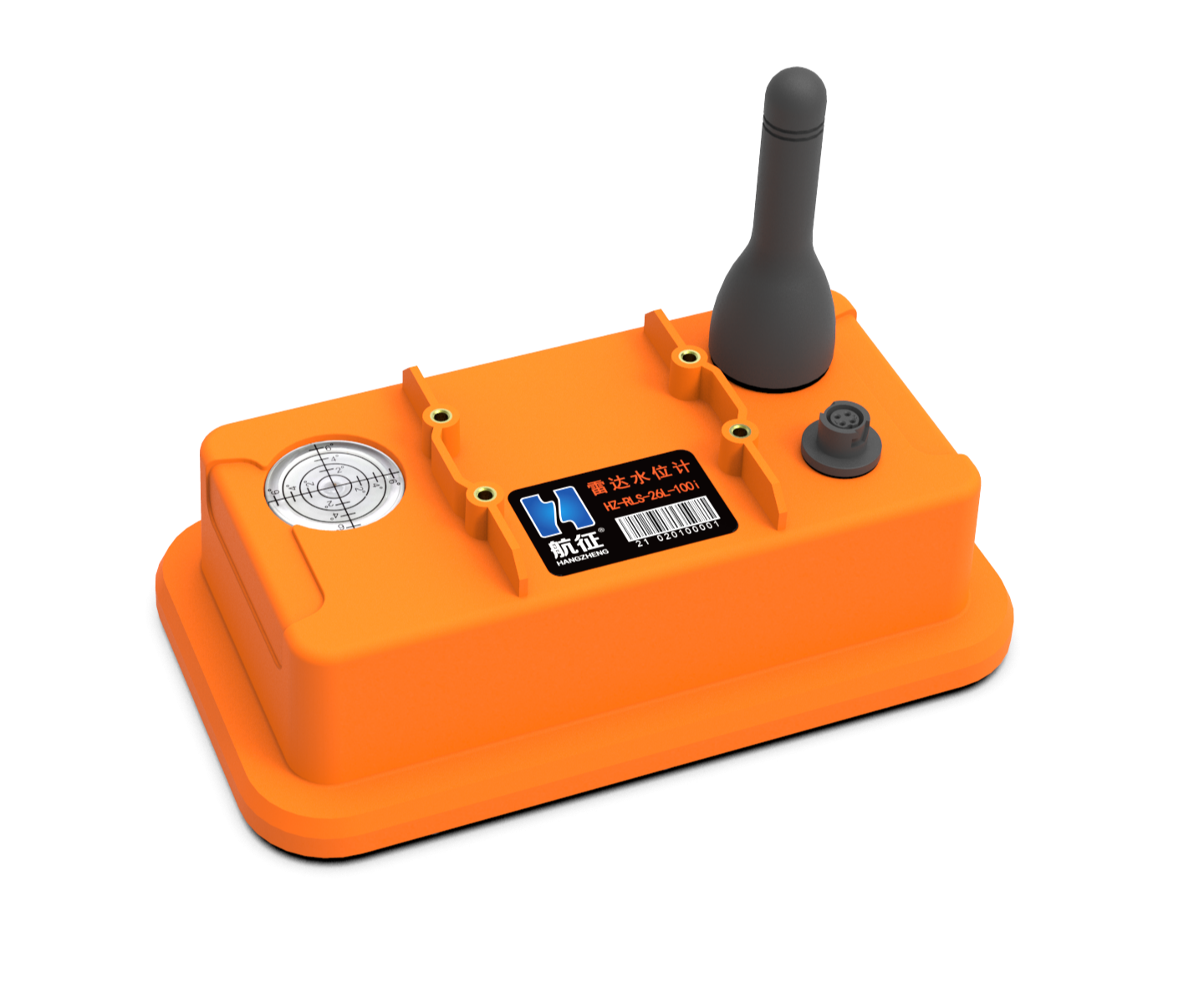

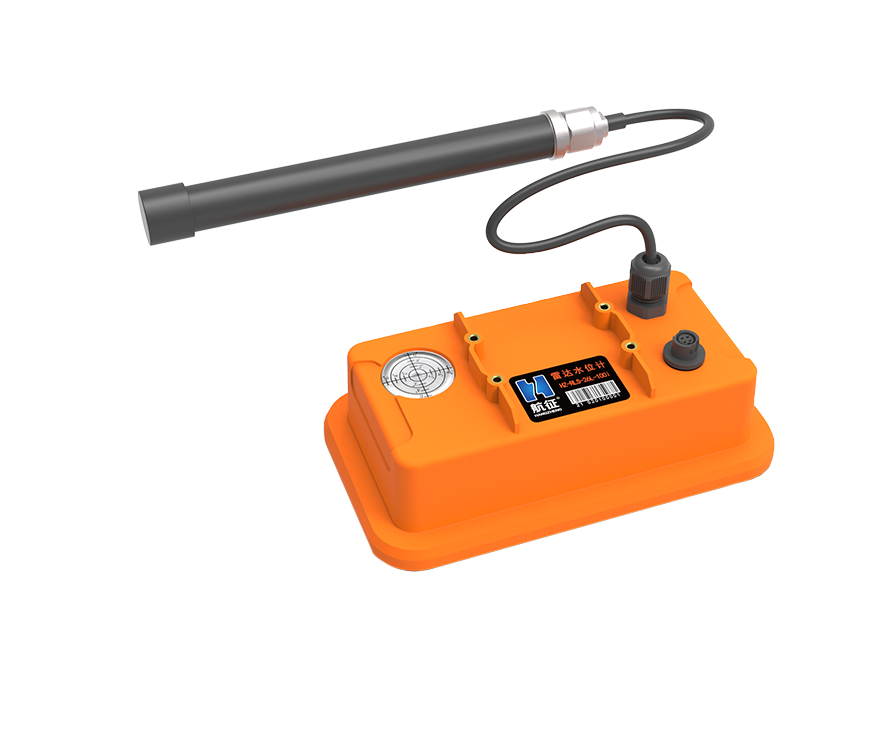

HZ-RLS-26L series
The 26L series radar water level meter is a non-contact liquid level measurement product developed for large-section application scenarios. It adopts a planar microstrip array antenna design, has a compact structure, small size, and a maximum frequency sweep range of 24-26GHz. It has high measurement accuracy and It has technical features such as low power consumption, strong anti-interference ability, and is not affected by temperature, condensation, and cobwebs. It is widely used in monitoring scenarios such as water level measuring stations, seasonal rivers, flash flood warnings, reservoirs, and sewage pipe networks.
Technical features
-
80 meters long range
High transmitting power, ideal for use in open areas
-
fade filter algorithm
Reduce data bias caused by water surface fluctuations
-
posture compensation
Designed to solve deviations caused by bridge vibration and mounting rod shaking
-
Measurement certificate
Possess the "Measuring Instrument Type Approval Certificate" issued by the state
-
Protective design
Lightning protection, explosion-proof (intrinsically safe certification), waterproof (IP68)
Technical parameters
Scenario application
-

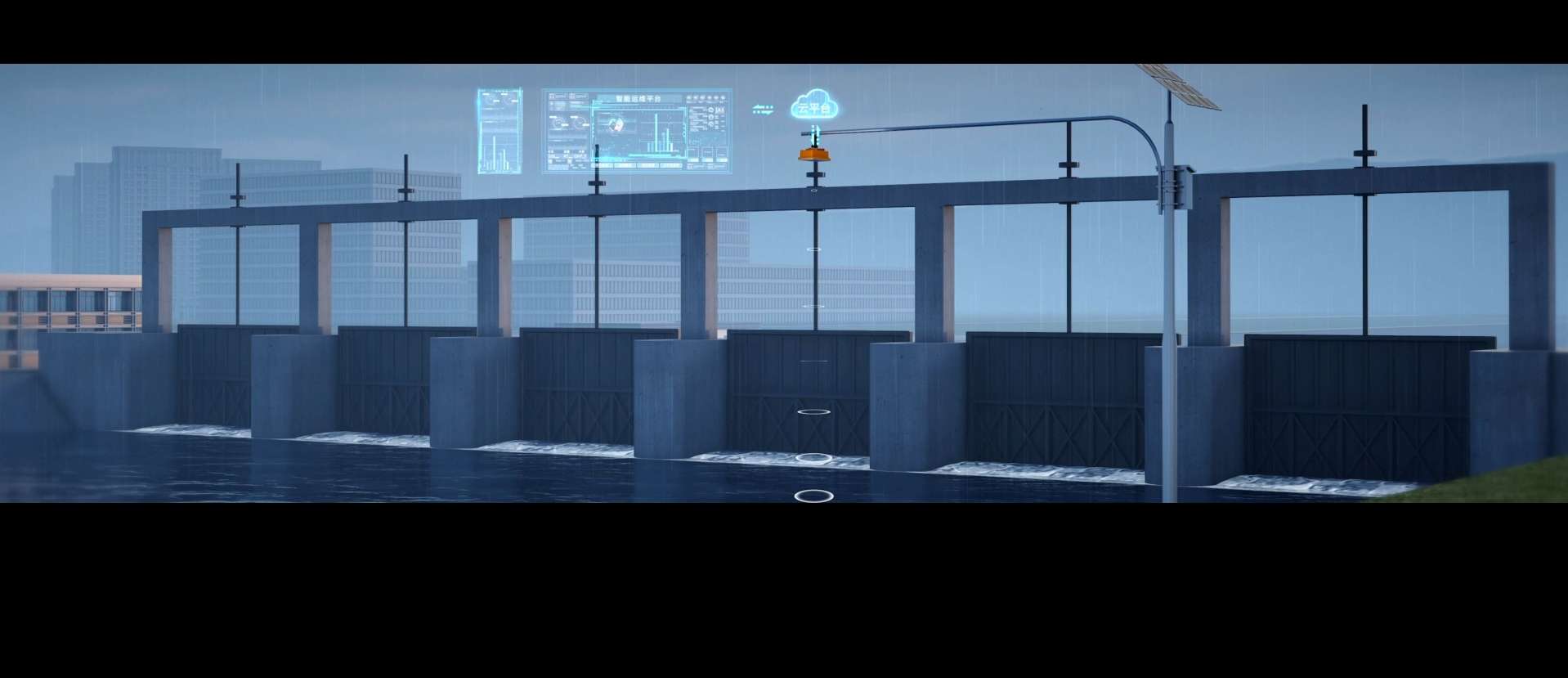

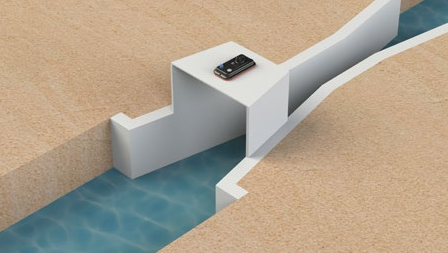

Metering and monitoring of water weirs
-

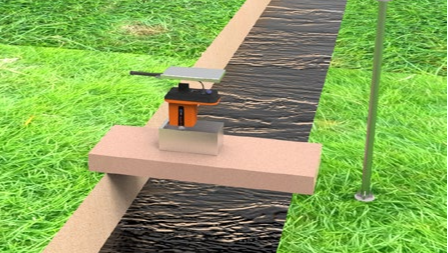

Metering and monitoring of Bachel trough nullahs
-

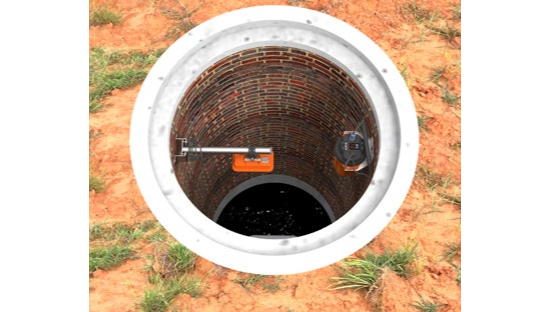

Monitoring of water levels in urban manholes
-

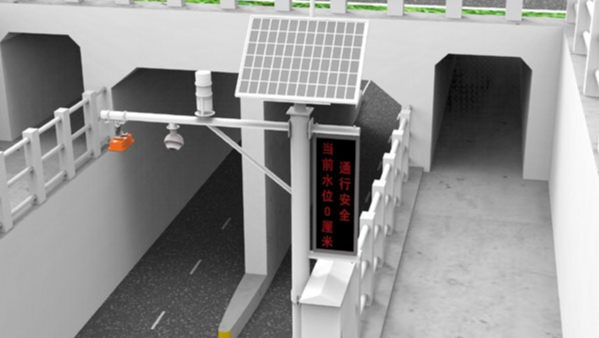

Monitoring of waterlogging points under the bridge
-

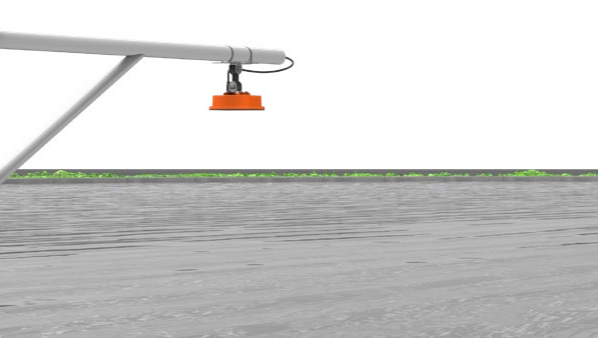

Large-section river water level monitoring
