Radar flow meter
The 24Q-300 Radar Flow Meter is a non-contact online flow monitoring product developed for complex meteorological scenarios such as rain, snow, and wind
-
Product Overview
-
Technical features
-
Technical parameters
-
Scenario application
Product Overview

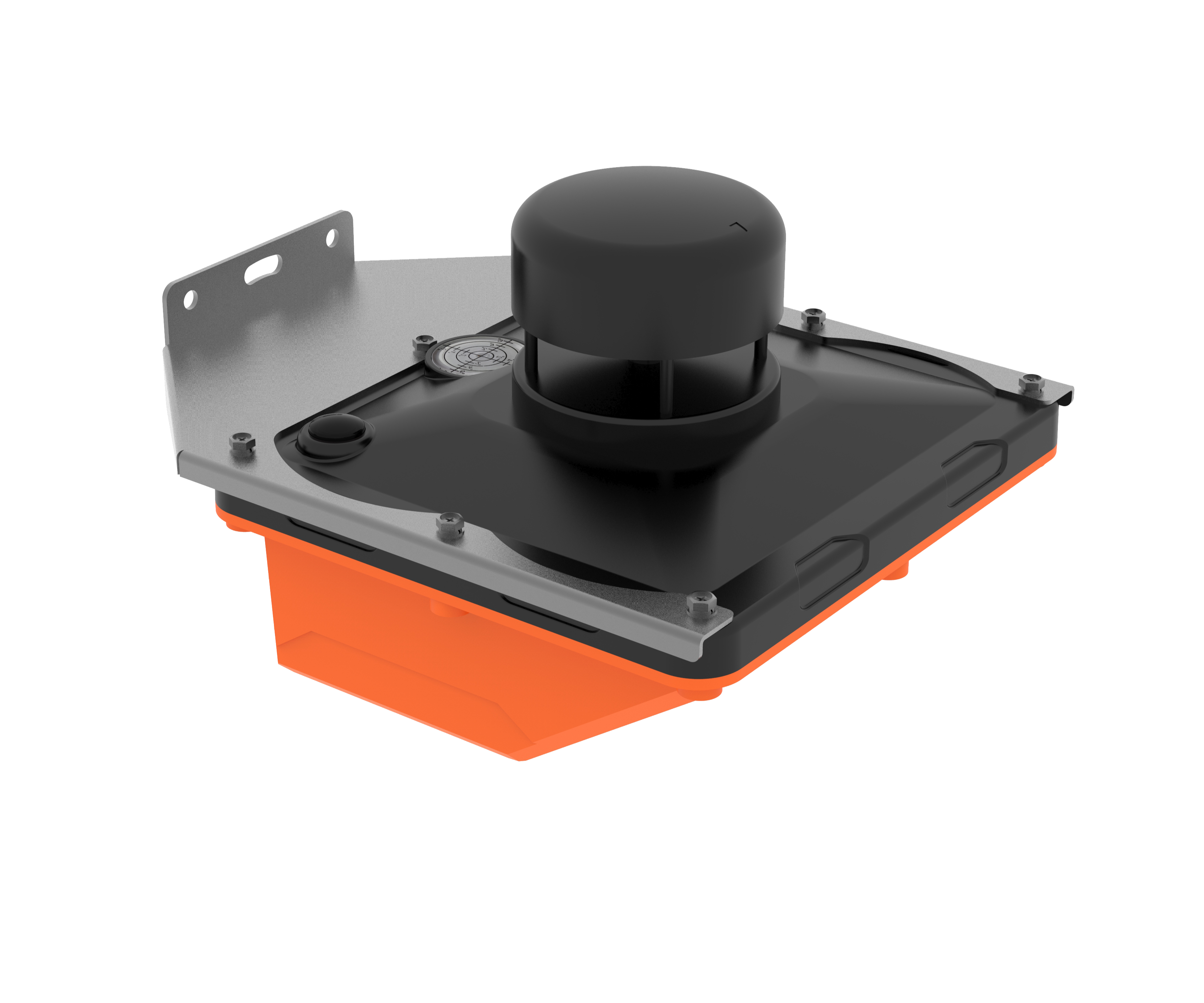

HZ-SVR-24Q-300
The 24Q-300 Radar Flow Meter is a non-contact online flow monitoring product developed for complex meteorological scenarios such as rain, snow, and wind. The 24Q-300 radar flowmeter integrates the functions of rainfall grade judgment, wind speed level measurement, wind direction determination, etc., which effectively avoids such problems. Its unique confidence evaluation function allows users to use data with more confidence.
Technical features
-

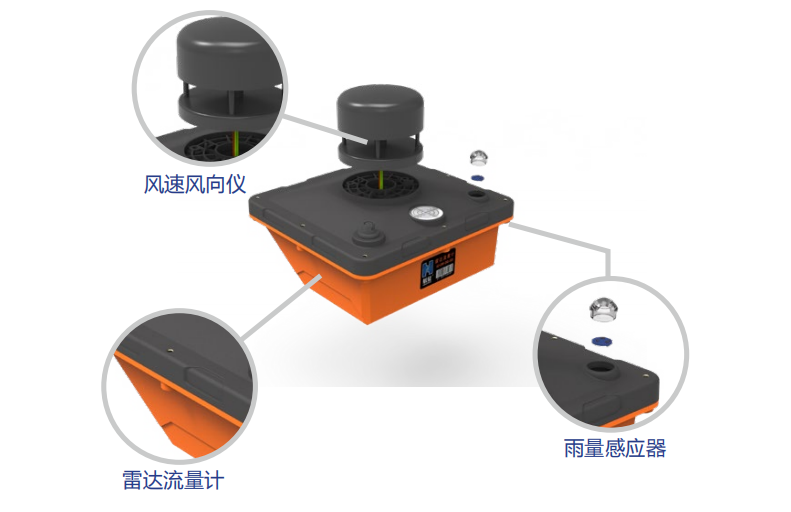

Multi-sensor fusion
Built-in rainfall, wind speed, and wind direction sensing equipment can automatically compensate for the prediction caused by external environmental factors, and will be included in the promotion directory of the Ministry of Water Resources in 2021
-
CFD+ self-learning
Based on the measured data, the hydraulic model was fitted, and the flow rate value was output by using the flow velocity-Kalman filter algorithm, and the invention patent "A Flow Measurement Method" was obtained.
-
Confidence-aware techniques
Provide a reference basis for data reliability
-

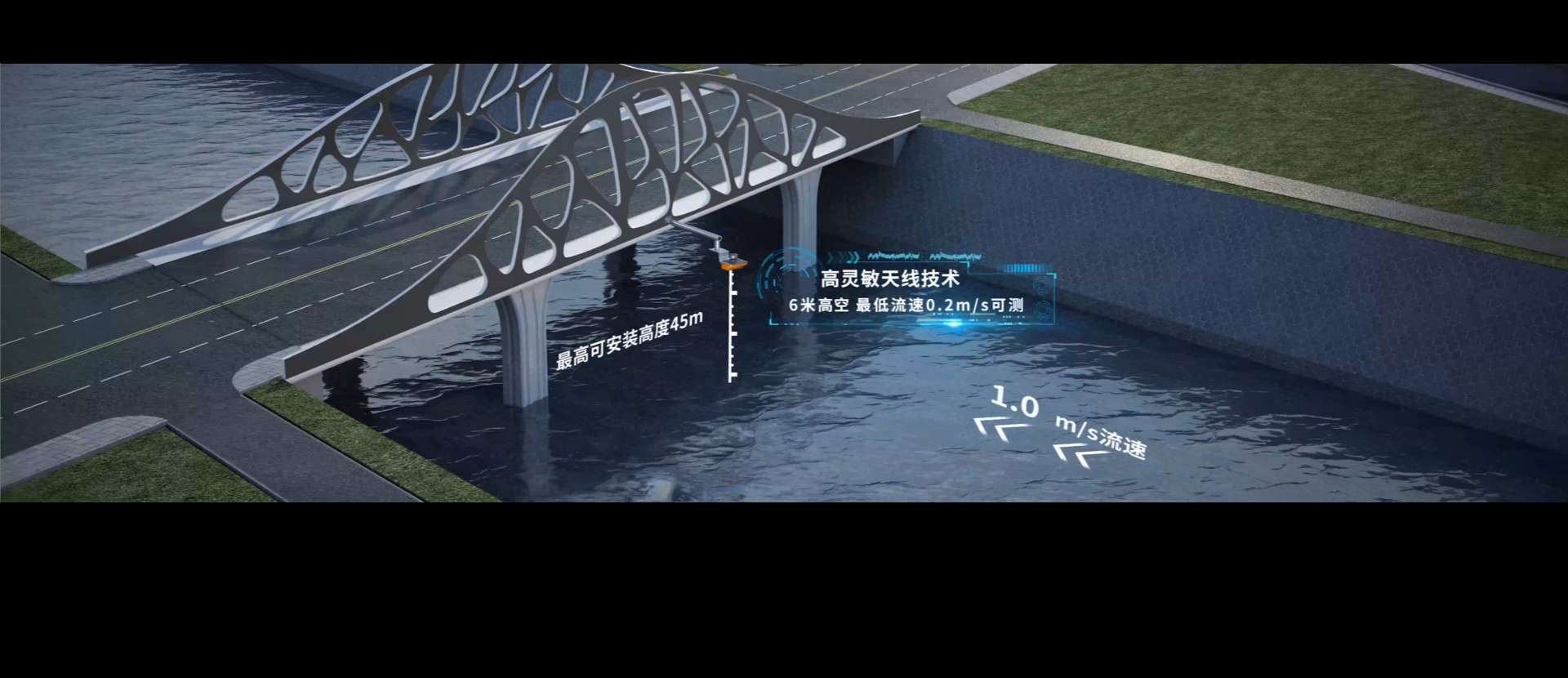

Highly sensitive antenna technology
Obtained the invention patent "A Highly Sensitive Radar Velocimeter"
Technical parameters
Scenario application
-

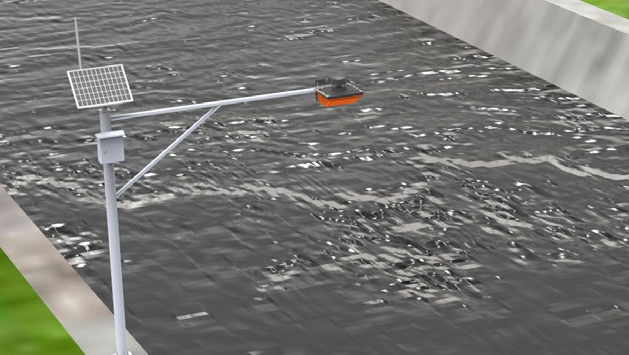

Monitoring of urban inland river flows
-

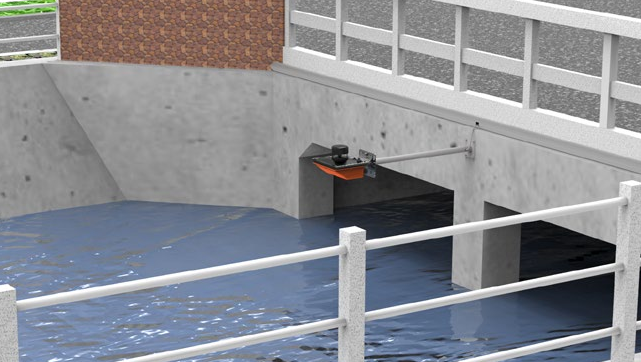

Nullah flow monitoring
