Ultrasonic time-of-flight flowmeter
TTF is a high-precision online monitoring product developed for scenarios such as wide-section channels, large-diameter pipelines, and large-scale culverts
-
Product Overview
-
Technical features
-

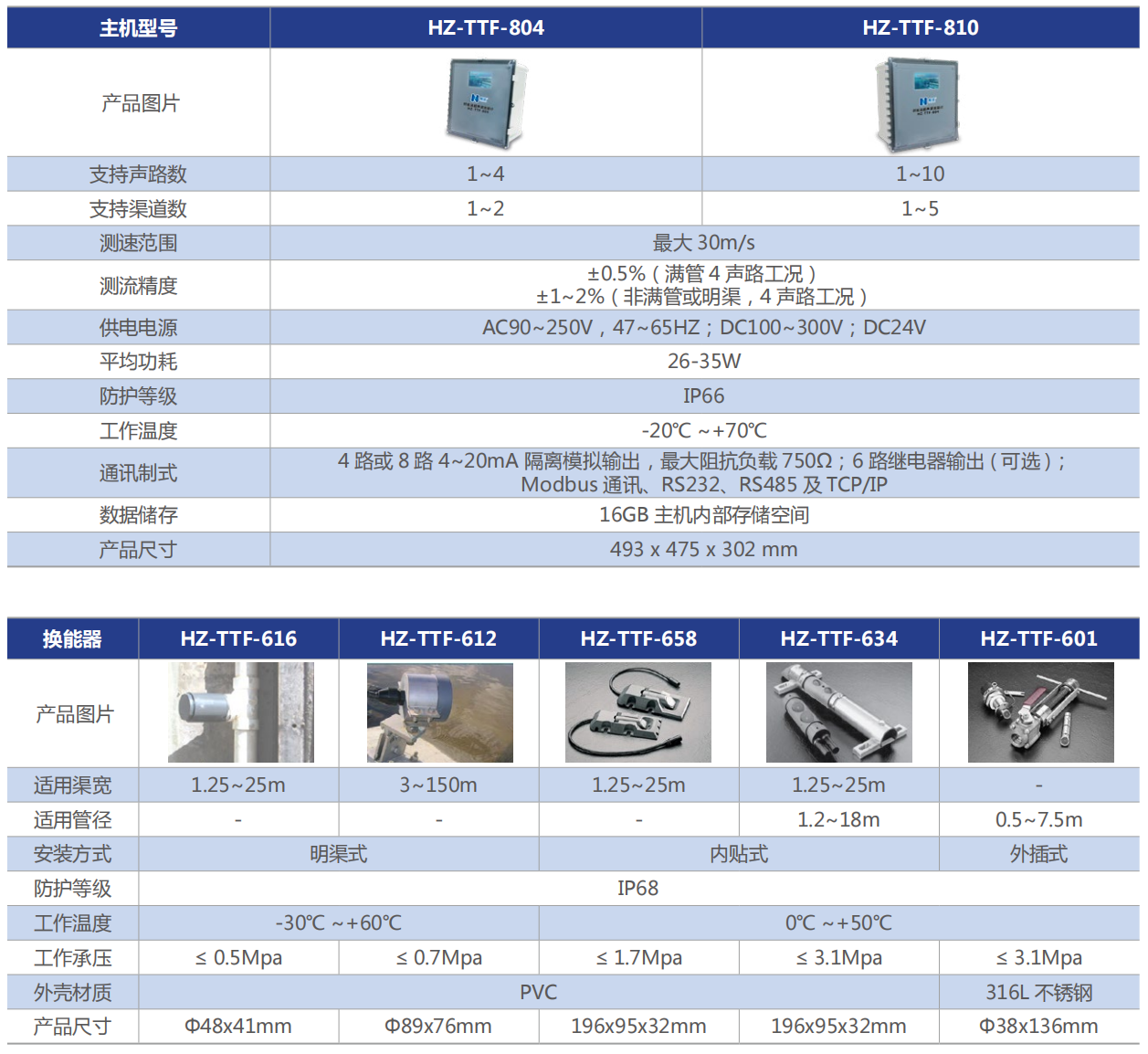

Technical parameters
-
Scenario application
Product Overview

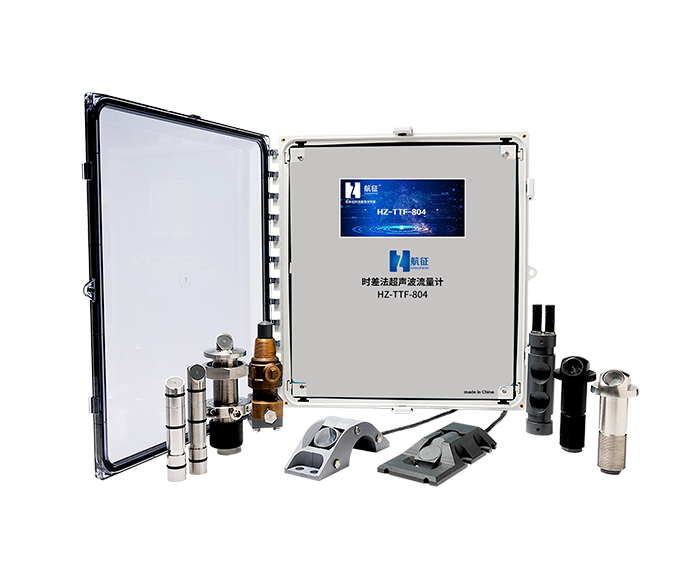

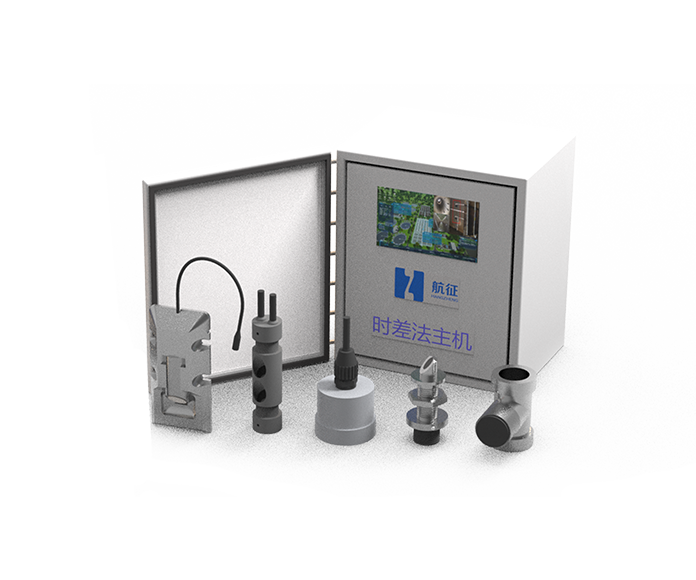

HZ-TTF series

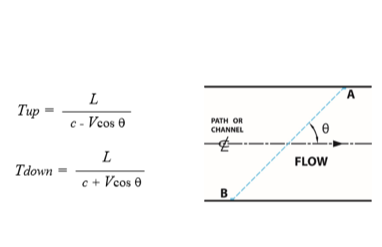

TTF series ultrasonic time difference flowmeter is a high-precision online monitoring product developed for wide cross-section channels, large-diameter pipelines, large culverts and other scenarios. The product uses the multi-channel time-of-flight method to measure the flow velocity at discrete elevation on the fluid profile, and the real-time flow rate can be calculated by the flow velocity profile area division with minimal flow error. Even under extreme current measurement conditions such as 1D (section width / pipe diameter) in the steady ≤flow section, the measurement accuracy is still high.
Technical features
-
Measurement accuracy up to 0.5% for standard cross-sections
-
Turbulent flow patterns are also accurately measured
The cross-path method maintains measurement accuracy in the steady flow section ≤ 1D and can also effectively cope with the effects of cross-flow or eddy currents
-
150m maximum cross-sectional measurement
The high-voltage excitation transducer is adopted, and the penetration in the water is strong
-
Scalability
One host can support up to 10 measurement paths at the same time
-
Low maintenance
The use of special materials and high-performance transducers can work for a long time even in harsh water quality, and the natural river only needs to be maintained once a year
-
Touch-type digital display host
It is convenient to view data and configure parameters in the field
Technical parameters
Scenario application
-

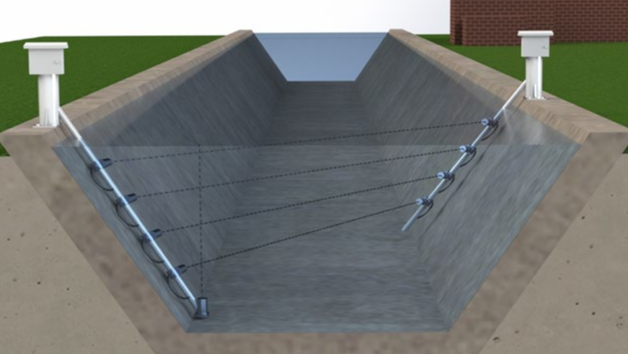

Open channel flow measurement
-

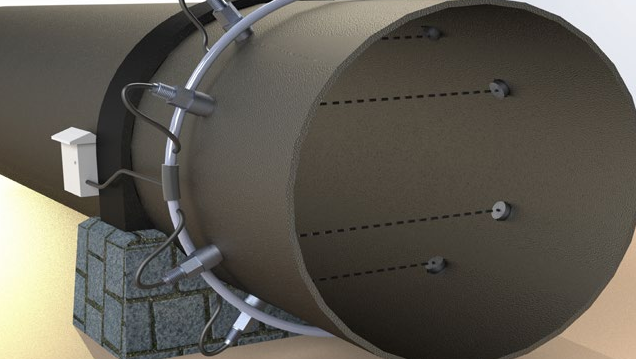

Pipeline flow measurement
