V-ADCP series flow meter
VADCP-1MQP is a contact online flow measurement product developed for urban drainage pipe networks, open channels and box culverts
-
Product Overview
-
Technical features
-
Technical parameters
-
Scenario application
Product Overview
HZ-VADCP-1MQP
VADCP-1MQP Ultrasonic Profile Flowmeter is a new generation of contact online flow measurement products developed for urban drainage pipe networks, open channels, box culverts and other scenarios. Compared with ordinary ultrasonic flowmeters, VADCP-1MQP performs a maximum of 128 layers of layered velocity measurement on the target water body through phase difference coding and pulse accumulation algorithm, realizing the iterative upgrade from point measurement to line measurement, and truly presenting the flow rate, water level, flow rate and other information of the target water body.
Technical features
-

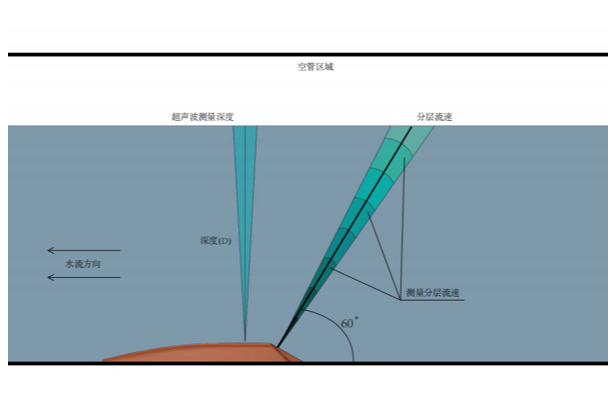

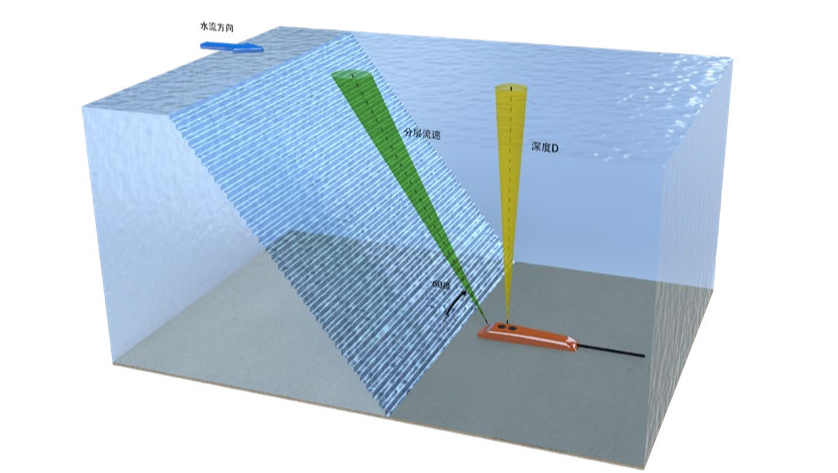

128 layers of layered speed measurement
The hierarchical velocity measurement is realized by phase difference coding and pulse accumulation algorithm
-
Flat design (2cm clear height only)
The water frontal area is small, which does not affect the flow regime of the target water body at the measurement end
-
Measurement with zero dead zones
The measurement can be started before the water surface passes the device
-
Hydraulic model
It is embedded with the flow calculation model based on flow distribution developed in cooperation with Hohai University, and can directly output flow data
-

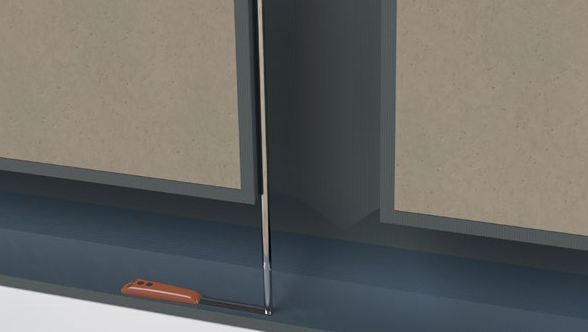

Flexible installation
Choose the top or bottom for installation according to the condition of the pipe
-
Protective design
Lightning protection, explosion-proof (intrinsically safe certification), waterproof (IP68)
Technical parameters
Scenario application
-
Artificial open channel flow monitoring
-
Flow monitoring of stormwater and sewage pipe networks
