Radar ultrasonic multi-function flow meter
The 122QP-X radar ultrasonic multi-function flowmeter is a new pipeline network flow measurement product developed by Hangzheng for urban rainwater and sewage pipe networks, river outlets and other scenarios
-
Product Overview
-
Technical features
-
Technical parameters
-
Scenario application
Product Overview

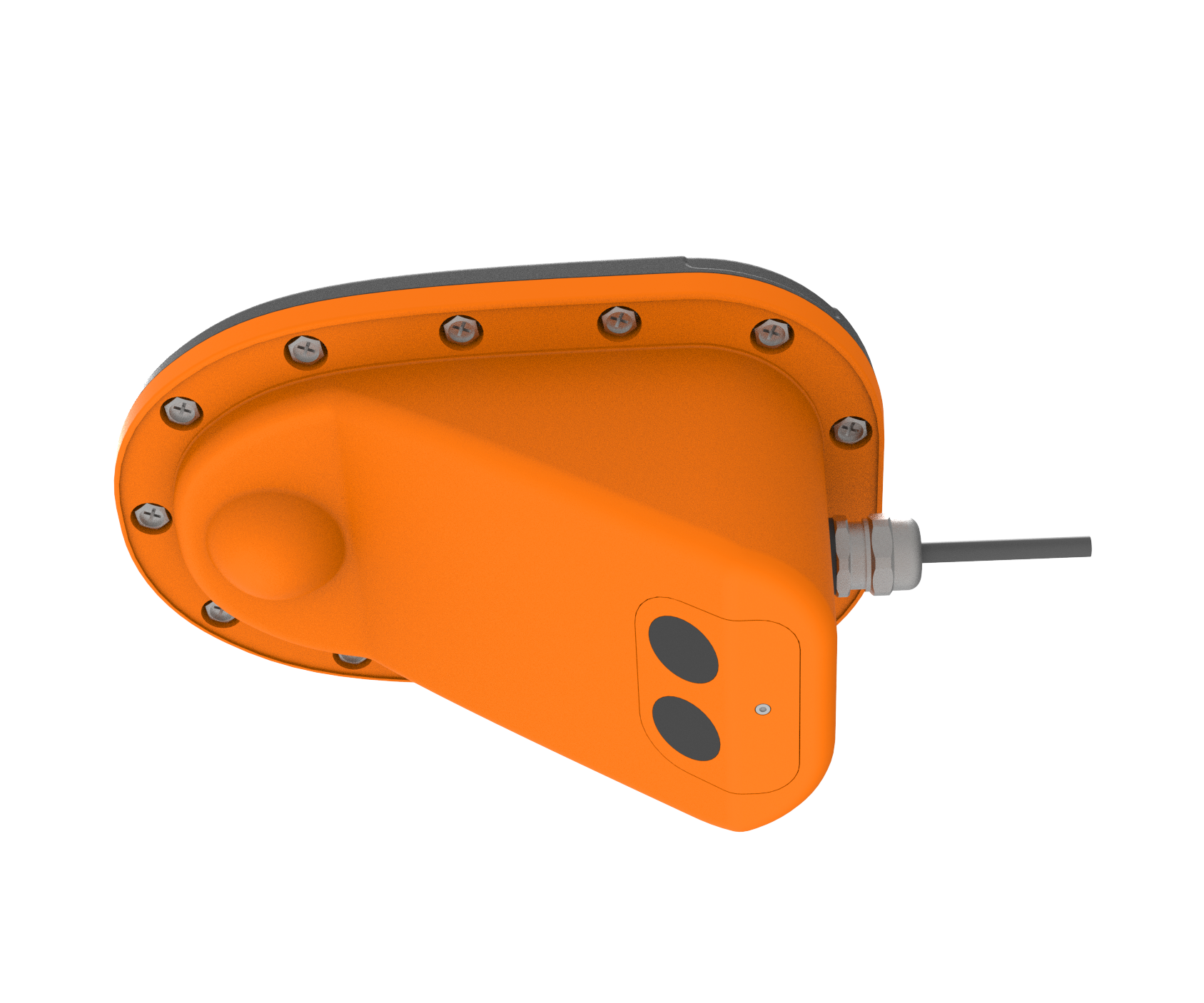

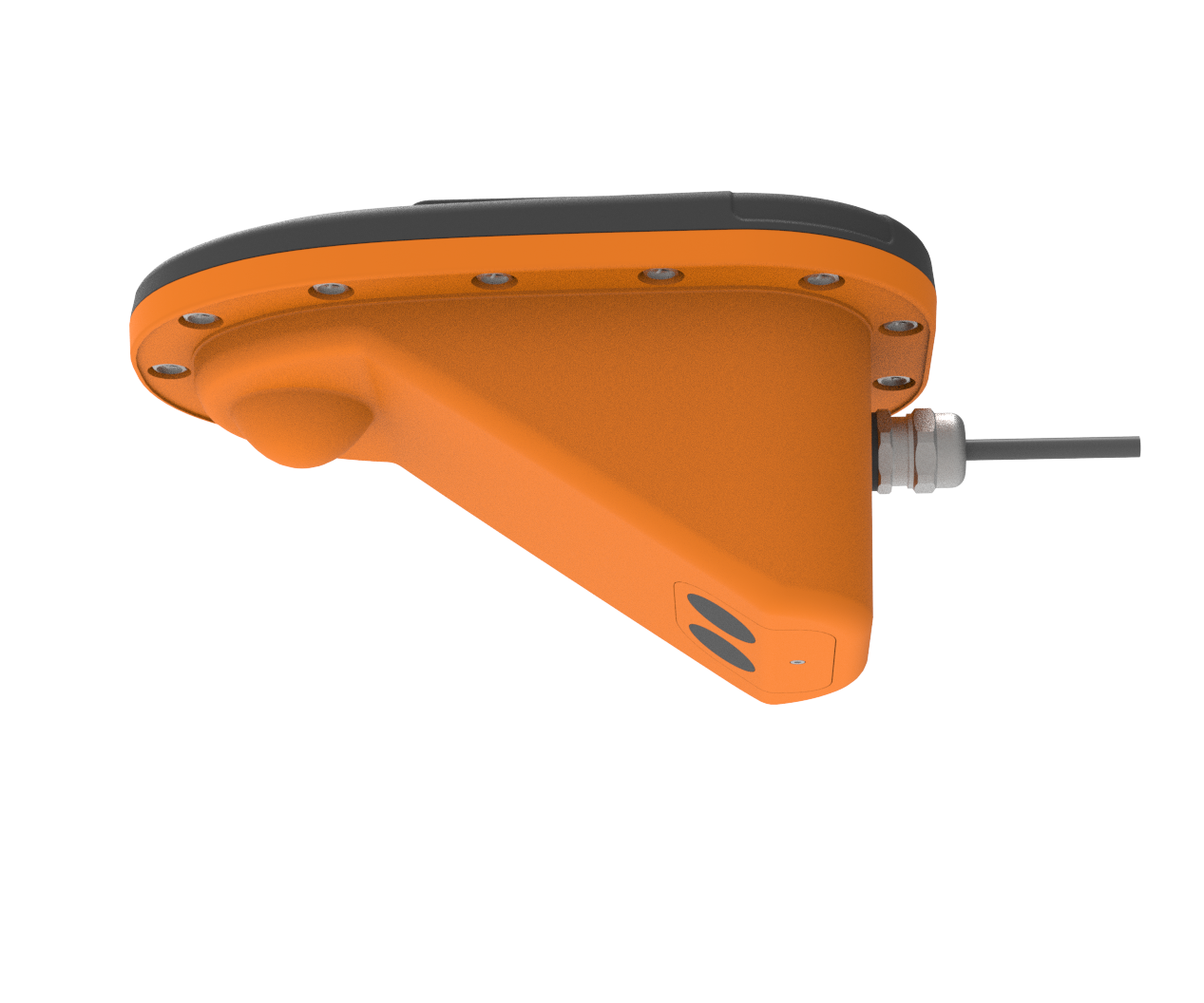

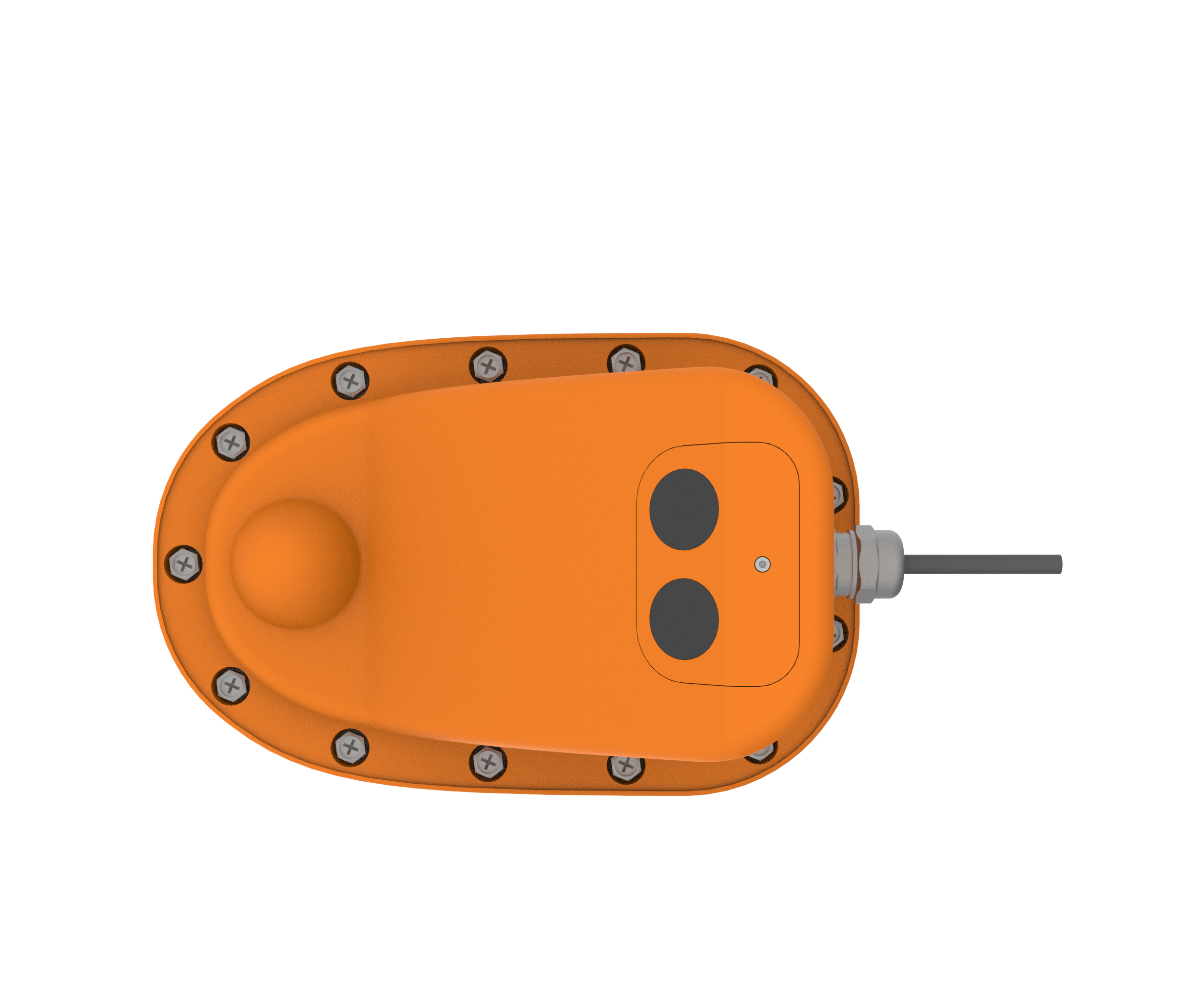

HZ-SVR-122QP-X
The 122QP-X radar ultrasonic multi-function flowmeter is a new pipeline network flow measurement product developed by Hangzheng for urban rainwater and sewage pipe networks, river outlets and other scenarios. The 122QP-X is highly integrated with the advantages of radar current measurement and ultrasonic current measurement, realizing full-tube and non-full-pipe full-scene current measurement, and at the same time, it has the characteristics of extremely low top-mounted operation and maintenance of radar products. As a result, the 122QP-X can easily cope with complex and harsh pipe network conditions.
Technical features
-
Both full and non-full tubes can be measured

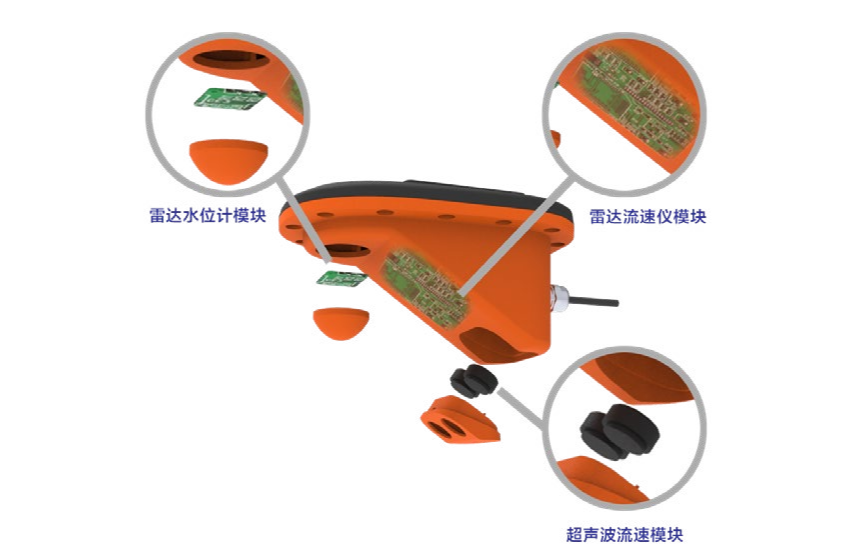

Dual-wave current measurement mode with radar + ultrasonic
-

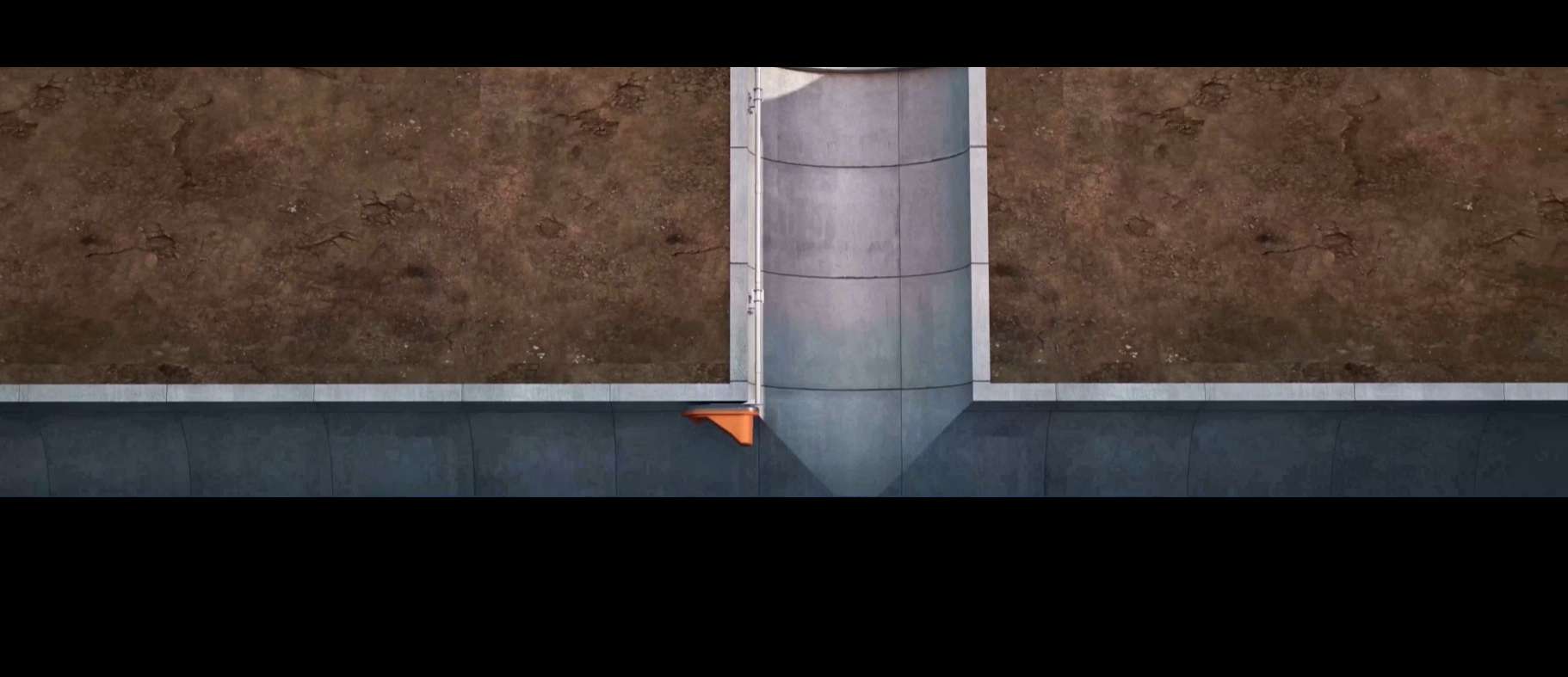

Pipe top mounting
It can effectively reduce the impact of siltation and garbage on equipment
-
There is no need to go down the well to install
It greatly improves the safety of personnel and equipment, and facilitates later operation and maintenance
-
Professional CFD models
It is embedded with the pipe network flow calculation model developed in cooperation with Tsinghua University, and directly outputs monitoring data such as water level, flow rate, and flow rate
-
Protective design
Explosion-proof (intrinsically safe), waterproof (IP68)
Technical parameters
Scenario application
-

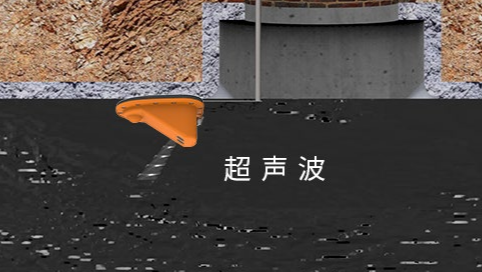

Full tube or submerged current measurement
-

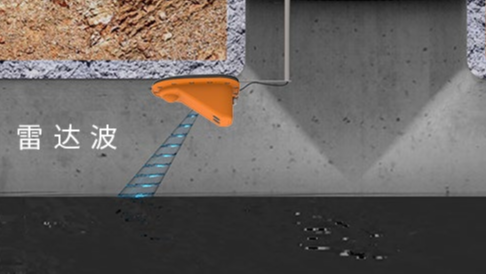

Non-full tube (non-submerged) current measurement
