Portable ultrasonic flow meter

The HZ-VADCP-1MQH portable ultrasonic profile flowmeter adopts a layered measurement method, which truly realizes the conversion from point measurement to surface measurement compared with ordinary ultrasonic flowmeter, and the measurement results are more accurate.

Product Overview

HZ-VADCP-1MQH

The HZ-VADCP-1MQH portable ultrasonic profile flowmeter adopts a layered measurement method, which truly realizes the conversion from point measurement to surface measurement compared with ordinary ultrasonic flowmeter, and the measurement results are more accurate. The whole system adopts Bluetooth communication power supply module, and monitors data through the Bluetooth applet of the mobile phone, and displays a variety of monitoring elements such as section flow velocity, depth, instantaneous flow, temperature and so on in real time, which can be widely used for short-term temporary measurement in irrigation open channels, municipal drainage pipelines, hydrological basins and other scenarios.

  • 1MQH.2.png
  • 1MQH.3.png
  • 1MQH.4.png
  • 1MQH.5.png
  • 1MQH-M.png
  • 1MQH.2.png
  • 1MQH.3.png
  • 1MQH.4.png
  • 1MQH.5.png
  • 1MQH-M.png

Technical features

  • 1MQH.4.png
  • Small and convenient

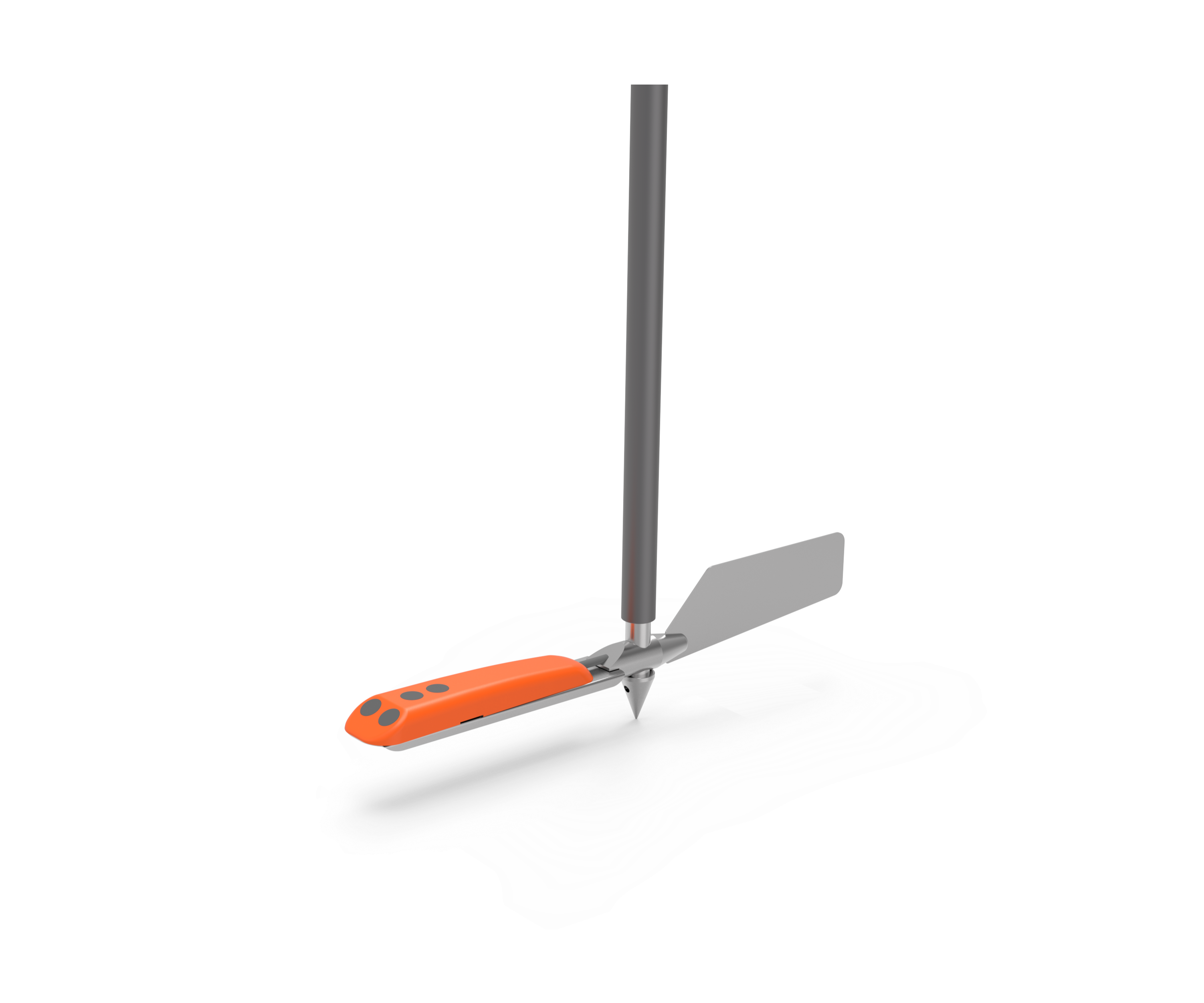

    Small size, light weight, streamlined design, does not affect the flow regime

  • No blind spots

    There is no blind spot in shallow water measurement, and the undercurrent can be measured after the water surface is submerged in the equipment

  • 128 layers of layers

    The wideband coding correlation algorithm for multi-distance gate velocity measurement with profile perpendicular line is used to support up to 128 hierarchical measurements

  • Compliance with hydrographic survey specifications

    The timing resolution is 0.1 seconds, and the current measurement lasts 100 seconds, which meets the hydrographic survey specifications

  • Bluetooth function

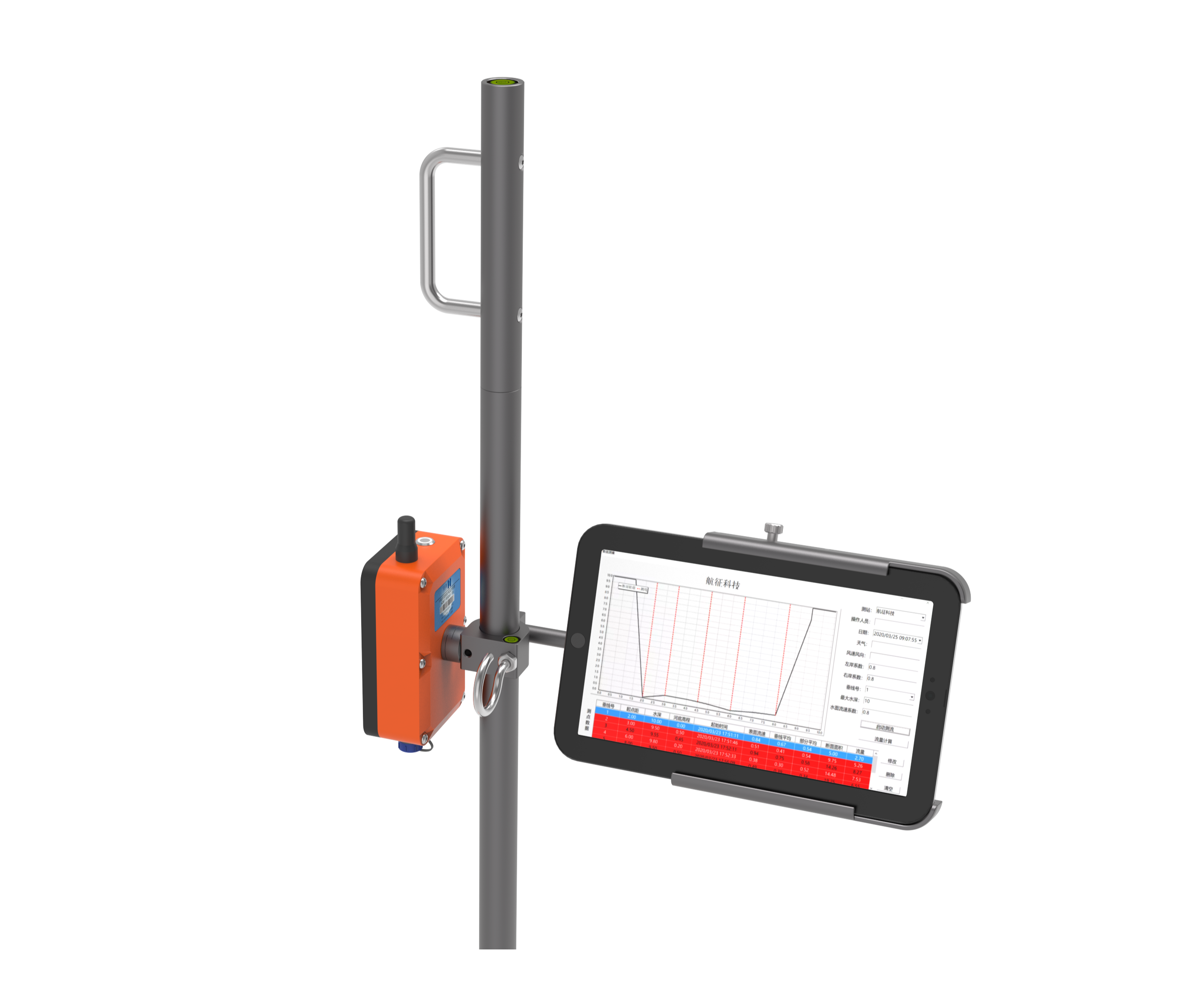

    The measurement data is transmitted to the applet in real time through Bluetooth, and several flow rate measurement results can be stored in the applet at any time

Technical parameters

产品型号HZ-VADCP-1MQH
测速频率1MHz
测速范围-6m/s-+6m/s
测速精度±0.01ms;±1%FS
稳定输出数据时间小于10s
单元层大小小1cm
水位测量范围0-10m
水位测量精度2mm
温度测量范围-30℃-70℃
温度测量精度±0.2℃
工作温度-30℃-70℃
角度精度分辨率精度±0.5°;分辨率0.1°
测速历时0.1-100s
传感器尺寸203*53*20mm
供电电源4800mAH,12.6V锂电池(可充电)
工作时长不低于5小时





Scenario application

  • 10.18.png

    Artificial open channel flow monitoring

  • 10.17.png

    Flow monitoring of stormwater and sewage pipe networks
